Products / Ultima PF™ pulmonary function system
Pulmonary Function

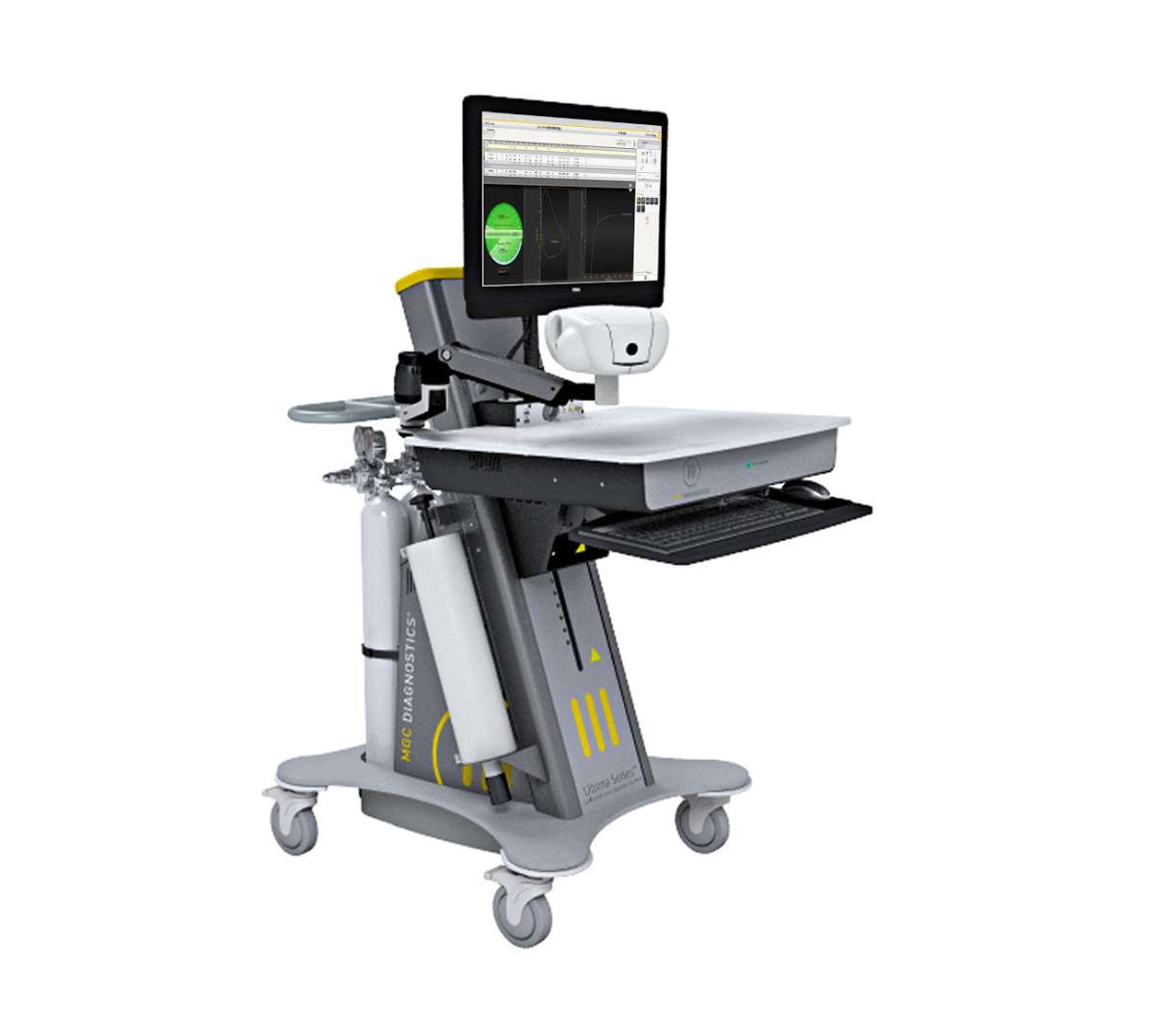

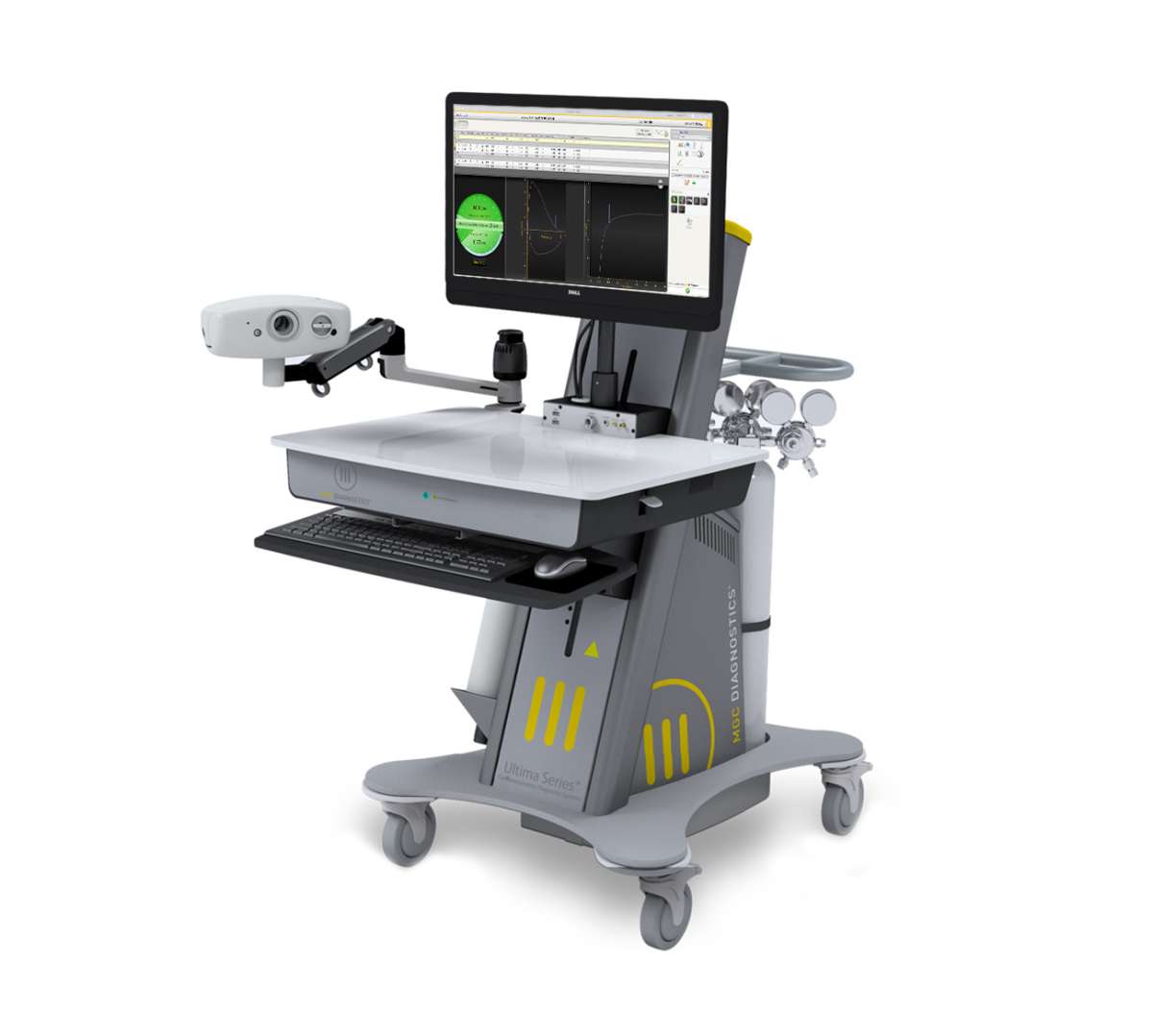

Ultima PF™ pulmonary function system

Complete Pulmonary Function Testing

Contact a Sales Rep
Overview

A medical system can’t just look nice, it has to be able to improve patient care with intuitive, easy-to-use technology while optimizing functional capabilities. We designed the Ultima Series™ cardiorespiratory diagnostic systems to do just that.

The Ultima PF™ pulmonary function system offers complete pulmonary function testing for pediatric through adult patients.

  • Powerful diagnostic tool for the clinician.
  • Compact and versatile pulmonary function platform.
  • Optional upgrades include complete exercise and nutritional assessment, providing future expansion of testing capabilities.
Features

Unique System Design

The Ultima system’s all-in-one design allows for maximum testing comfort for the technician and the patient while utilizing the latest technology for unparalleled performance and reliability.

  • Full adjustable desktop allows for expansive personal workspace whether the technologist is sitting for standing.
  • Room-to-room portability with gas tanks.
  • Scheduler allows for automatic warm-up so the system is always ready for testing.

Test Specific Quick Calibration

The calibration tower allows for simplified gas calibration based on the test being performed (pulmonary function or metabolic) without compromising accuracy of test results and lab efficiency.

Advanced Digital Electronics

  • Real-Time Diffusion provides visualization of the alveolar gas sample.
  • Automatic gas calibration saves testing time.

ATS/ERS Standards and Guidelines compliant
Comprehensive set of measurements for Lung Volumes, Spirometry & Diffusion

Testing Capabilities

All test features and options shown below are for users with BreezeSuite™ software.

Testing Capabilities
PF
PFX
CPX
Cardio2
CCM
CardiO2 / PFX
Pulmonary Function Tests
Spirometry (FVC, SVC, MVV)
Standard
Standard
Standard
Standard
Standard
Standard
Respiratory Mechanics (MIP/MEP)
Standard
Standard
None
Optional
None
Standard
Diffusing Capacity
Standard
Standard
None
Optional
None
Standard
Nitrogen Washout
Standard
Standard
None
Optional
None
Standard
Single Breath N2
Standard
Standard
None
Optional
None
Standard
Arterial Blood Gases (ABG manual entry)
Standard
Standard
Standard
Standard
Standard
Standard
ecg-heart-rate-configurations
Integrated 12-lead ECG
None
Optional
None
Standard
None
Standard
gas-exchange-tests
Direct Fick Cardiac Output
None
Standard
Standard
Standard
Standard
Standard
Indirect Fick Cardiac Output (NICO)
None
Optional
Optional
Optional
Optional
Optional
Exercise Capacity (O2 and CO2 )
None
Standard
Standard
Standard
Standard
Standard
Nutrition Assessment REE/RMR (O2 and CO2)
None
Optional
Optional
Optional
Optional
Optional
Standard
Optional
Configurations

Test Modes (standard)

  • Spirometry: FVC, SVC, MVV
  • DLco - Single Breath
  • Nitrogen Washout
  • MIP/MEP: Respiratory Mechanics
  • SBN2
  • ABG: Arterial Blood Gas Entry

Additional Test Mode (optional)

  • Bronchial Provocation

Software Features (standard)

  • ATS/ERS Error Codes
  • Disability Reports
  • Manual Data Entry
  • Microsoft® SQL Database
  • Pediatric Incentives
  • Report Designer
  • Trend Reports
  • User-Defined Predicteds

Additional Software Features (optional)

  • BreezeConnect™ HL7 interface software
  • BreezeConnect™ physician review software
  • BreezeSuite MultiUser™ networking software
  • BreezeSuite WebReview™ physician review software
  • Pulmonary Consult™ physician interpretation software
  • Database Query
  • Electronic Signature
  • Quality Control Query
Supplies

preVent® Flow Sensor

  • PN: 758100-004 (US), 2496 (Intl)
  • Qty: 24 per box

Patient Circuit, BreathPath™

  • PN: 758200-001
  • Qty: 12 per pack

Kit 1

  • Contains: Filter and Padded Nose Clip
  • PN: 536719-001
  • Qty: 100 per box

Kit 2

  • Contains: Filter, Padded Nose Clip & Mouthpiece
  • PN: 536723-001
  • Qty: 100 per box

Filter, preVent II™

  • Comfort fit oval mouthpiece with lip grip
  • PN: 536713-002
  • Qty: 100 per box

Filter, preVent®

  • Round mouthpiece design
  • PN: 536713-001
  • Qty: 100 per box

Filter, preVent II™, Pediatric

  • Comfort fit oval mouthpiece with lip grip
  • PN: 536713-005
  • Qty: 100 per box

Nose Clip

  • DISPOSABLE
  • Clear: extra padded poly
  • PN: 536007-003
  • Qty: 100 per pack

Nose Clip

  • DISPOSABLE
  • White: no pad
  • PN: 536007-001
  • Qty: 100 per pack

Nose Clip

  • DISPOSABLE
  • Parallel Nose Clip
  • PN: 536018-001
  • Qty: 100 per box

Mouthpiece, Adult Medium

  • DISPOSABLE
  • Use with preVent flow sensor OR preVent or preVent II filter
  • PN: 536006-004
  • Qty: 100 per pack

Mouthpiece, Adult Medium

  • General purpose
  • Use with preVent flow sensor
  • PN: 758300-001
  • Qty: 50 per pack

Mouthpiece, Adult Large

  • Use with preVent flow sensor
  • PN: 536006-001
  • Qty: 10 per pack

Mouthpiece, Adult Medium

  • Use with preVent II filter
  • PN: 536101-001
  • Qty: 10 per pack

Mouthpiece, Adult Small

  • Use with preVent flow sensor
  • PN: 536006-003
  • Qty: 10 per pack

Rubber Coupler

  • Use for syringe calibration of preVent flow sensor
  • PN: 536003-001
  • Qty: 1 each

Coupler, DLco

  • Coupler for DLco QC
  • PN: 536003-002
  • Qty: 1 each

Umbilical

  • PN: 701066-024
  • Qty: 1 each

Gas Tanks, Contact-Us

  • Gas Tanks are available to order.
  • Contact Technical Support at 1-800-333-4137 to verify the correct gas tank for your system.

Gas, Calibration

  • 5% CO2,12% O2, Bal N2
  • Size: ED (disposable)
  • PN: 536053-001

Gas, DLco

  • 0.3% CO, 0.3% CH4, 21% O2, Bal N2
  • Size: ED (disposable)
  • PN: 536057-101

Gas, DLco

  • 0.3% CO, 0.3% CH4, 21% O2, Bal N2
  • Size: ED (disposable)
  • PN: 536057-001

Gas

  • 100% O2
  • Size: ED (disposable)
  • PN: 536052-001

Gas

  • 100% O2
  • Size: ED (disposable)
  • PN: 536052-101

An Integrated System

An Integrated System

Cardiorespiratory Diagnostic Software
  • Ease of use allows operator to focus on patient's effort.
  • Timely prompts guide the operator through the entire testing process.
  • Powerful Microsoft® SQL database provides flexibility in accessing, manipulating and reporting data.
  • Automated quality-assurance program notifies operator to ensure results comply with ATS/ERS acceptability criteria.
  • Software allows physicians to access data and interpret patient results from any computer that has permission to access the facility network (VPN).



See Software Solutions

HL7 Interface Software

AscentConnect™ HL7 interface software allows any number of networked systems to exchange data with the electronic medical records (EMR) system.

  • Electronic medical record interface using latest HL7 standards with either unidirectional or bidirectional capability
  • Flexible access allows physicians to view and interpret patient results from any location on the facility’s network



See Software Solutions

Superior Infection Control

Having clear and defined infection control policies is important for your protection.

We give you three options for infection control - you make the choice that is right for you!

1. Change: simply change the filter and keep the same preVent® flow sensor and BreathPath™ patient circuit.

2. Re-Use: change the flow sensor and patient circuit between patients and replace with disinfected components.

3. Dispose: dispose of the flow sensor and patient circuit after each patient.



See All Supplies

preVent® Flow Sensor for Simplicity and Accuracy

Our proprietary preVent® flow sensor saves time between patients and provides maximum infection control compared to other pneumotach devices..

  • Eliminates warm-up or flow recalibration between patients.
  • Simple snap in setup contains no moving parts or electronics for maximum infection control.
  • Options to use with a filter (for PFT), sterilize, or discard, making it extremely versatile and cost effective.
  • Meets ATS/ERS standards and specifications.



See All Supplies
