Products / Ultima™ CardiO2® gas exchange analysis system
Metabolic with 12 lead ECG

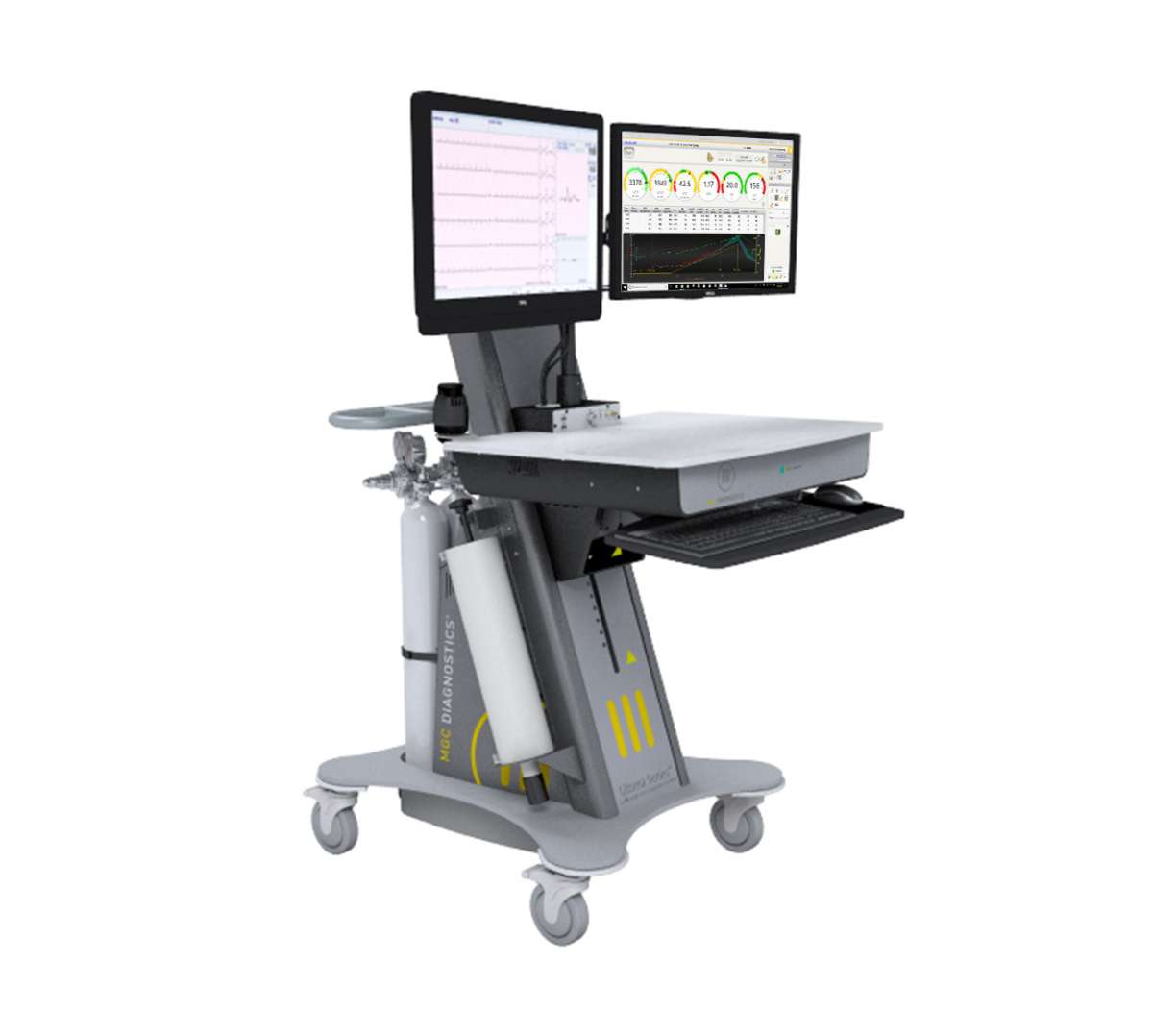

Ultima™ CardiO2® gas exchange analysis system

Two technologies in a singular all-in-one powerful cardiorespiratory diagnostic system.

Contact a Sales Rep

A medical system can’t just look nice, it has to be able to improve patient care with intuitive, easy-to-use technology while optimizing functional capabilities. We designed the Ultima Series™ cardiorespiratory diagnostic systems to do just that.

The Ultima™ CardiO2® gas exchange analysis system pairs two superior technologies to produce one singularly powerful solution. The Ultima CardiO2 system combines our leading gas exchange technology with the premier Mortara ECG. A single software platform seamlessly controls both the gas exchange and ECG components. The result is an all-in-one, easy-to-use, metabolic stress testing system.

  • Fast responding oxygen and carbon dioxide sensors acquire data on a discreet breath-by-breath basis, providing continuous analysis and display of data.
  • Simplified testing and data interpretation
  • Optional wireless ECG and thermal printer.

Unique System Design

The Ultima system’s all-in-one design allows for maximum testing comfort for the technician and the patient while utilizing the latest technology for unparalleled performance and reliability.

  • Full adjustable desktop allows for expansive personal workspace whether the technologist is sitting for standing.
  • Room-to-room portability with gas tanks.
  • Scheduler allows for automatic warm-up so the system is always ready for testing.

Test Specific Quick Calibration

The calibration tower allows for simplified gas calibration based on the test being performed (pulmonary function or metabolic) without compromising accuracy of test results and lab efficiency.

Proprietary Breath-by-Breath Testing Method

Offers superior breath measurement during both rest and exercise. Our preVent® flow sensor offers numerous advantages over other flow devices. The preVent is small, lightweight and comfortable. It can be either cleaned or discarded between patients yet meets all ATS/ERS requirements for accuracy.


12-Lead ECG is Powered by Mortara Instrument, Inc.

Mortara is the world leader in ECG technology. The Mortara system provides automated options, such as automatic arrhythmia detection and event marking to simplify test interpretation. An optional wireless ECG provides freedom for the patient and eliminates interference caused by traditional cable movement—producing a cleaner, higher-quality tracing.

Simplified Testing and Data Interpretation

  • Easy calibration process requires only one flow calibration per day and one automated gas calibration before each test.
  • preVent® flow sensor and preVent® face mask are comfortable and lightweight.

ATS/ERS STANDARDS AND GUIDELINES COMPLIANT
Comprehensive set of measurements for Lung Volumes, Spirometry & Diffusion

All test features and options shown below are for users with BreezeSuite™ software.

Testing Capabilities
PF
PFX
CPX
Cardio2
CCM
pulmonary-function-tests
Spirometry (FVC, SVC, MVV)
Standard
Standard
Standard
Standard
Standard
Respiratory Mechanics (MIP/MEP)
Standard
Standard
None
Optional
None
Diffusing Capacity
Standard
Standard
None
Optional
None
Nitrogen Washout
Standard
Standard
None
Optional
None
Single Breath N2
Standard
Standard
None
Optional
None
Arterial Blood Gases (ABG manual entry)
Standard
Standard
Standard
Standard
Standard
ecg-heart-rate-configurations
Integrated 12-lead ECG
None
Optional
None
Standard
None
gas-exchange-tests
Direct Fick Cardiac Output
None
Standard
Standard
Standard
Standard
Indirect Fick Cardiac Output (NICO)
None
Optional
Optional
Optional
Optional
Exercise Capacity (O2 and CO2 )
None
Standard
Standard
Standard
Optional
Nutrition Assessment REE/RMR (O2 and CO2)
None
Optional
Optional
Optional
Standard
Standard
Optional

Test Modes (standard)

  • Spirometry: FVC, SVC, MVV
  • 12 Lead ECG
  • O2 and CO2 Exercise Testing
  • HAST: High Altitude Simulation Test
  • Elevated FiO2 Test
  • ABG: Arterial Blood Gas Entry
  • Direct Fick Cardiac Output
  • EOV, Chronotropic Index

Additional Test Modes (optional)

  • Bronchial Provocation
  • NICO: CO2 Rebreath Indirect Fick Cardiac Output
  • Nutritional Assessment

Software Features (standard)

  • ATS/ERS Error Codes
  • Device Control
  • Disability Reports
  • Manual Data Entry
  • Microsoft® SQL Database
  • O2 Kinetics
  • OUES
  • Pediatric Incentives
  • Report Designer
  • Trend Reports
  • User-Defined Predicteds
  • VE/VCO2 Slope
  • VO2/Work Slope

Additional Software Features (optional)

  • BreezeConnect HL7 interface software
  • BreezeConnect physician review software
  • BreezeSuite MultiUser networking software
  • BreezeSuite WebReview™ physician review software
  • Exercise Consult™ physician interpretation software
  • ExerScript™ exercise prescription software
  • Pulmonary Consult™ physician interpretation software
  • Database Query
  • Electronic Signature
  • Exercise Flow Volume Loops
  • Quality Control Query

An Integrated System

Cardiorespiratory Diagnostic Software
  • Ease of use allows operator to focus on patient's effort.
  • Timely prompts guide the operator through the entire testing process.
  • Powerful Microsoft® SQL database provides flexibility in accessing, manipulating and reporting data.
  • Automated quality-assurance program notifies operator to ensure results comply with ATS/ERS acceptability criteria.
  • Software allows physicians to access data and interpret patient results from any computer that has permission to access the facility network (VPN).



See Software Solutions

HL7 Interface Software

BreezeConnect™ HL7 interface software allows any number of networked systems to exchange data with the electronic medical records (EMR) system.

  • Electronic medical record interface using latest HL7 standards with either unidirectional or bidirectional capability
  • Flexible access allows physicians to view and interpret patient results from any location on the facility’s network



See Software Solutions

Superior Infection Control

Having clear and defined infection control policies is important for your protection.

We give you three options for infection control - you make the choice that is right for you!

1. Change: simply change the filter and keep the same preVent® flow sensor and BreathPath™ patient circuit (Pulmonary Function Only).

2. Re-Use: change the flow sensor and patient circuit between patients and replace with disinfected components.

3. Dispose: dispose of the flow sensor and patient circuit after each patient.



See All Supplies

Flow Sensor for Simplicity and Accuracy

Our proprietary preVent® flow sensor and DirectConnect™ metabolic flow sensor saves time between patients and provides maximum infection control compared to other pneumotach devices.

  • Eliminates warm-up or flow recalibration between patients.
  • Simple snap in setup contains no moving parts or electronics for maximum infection control.
  • Options to use with a filter (for PFT), sterilize, or discard, making it extremely versatile and cost effective.
  • Meets ATS/ERS standards and specifications.



See All Supplies
