Products / Ergocard CPX exercise testing system
Metabolic

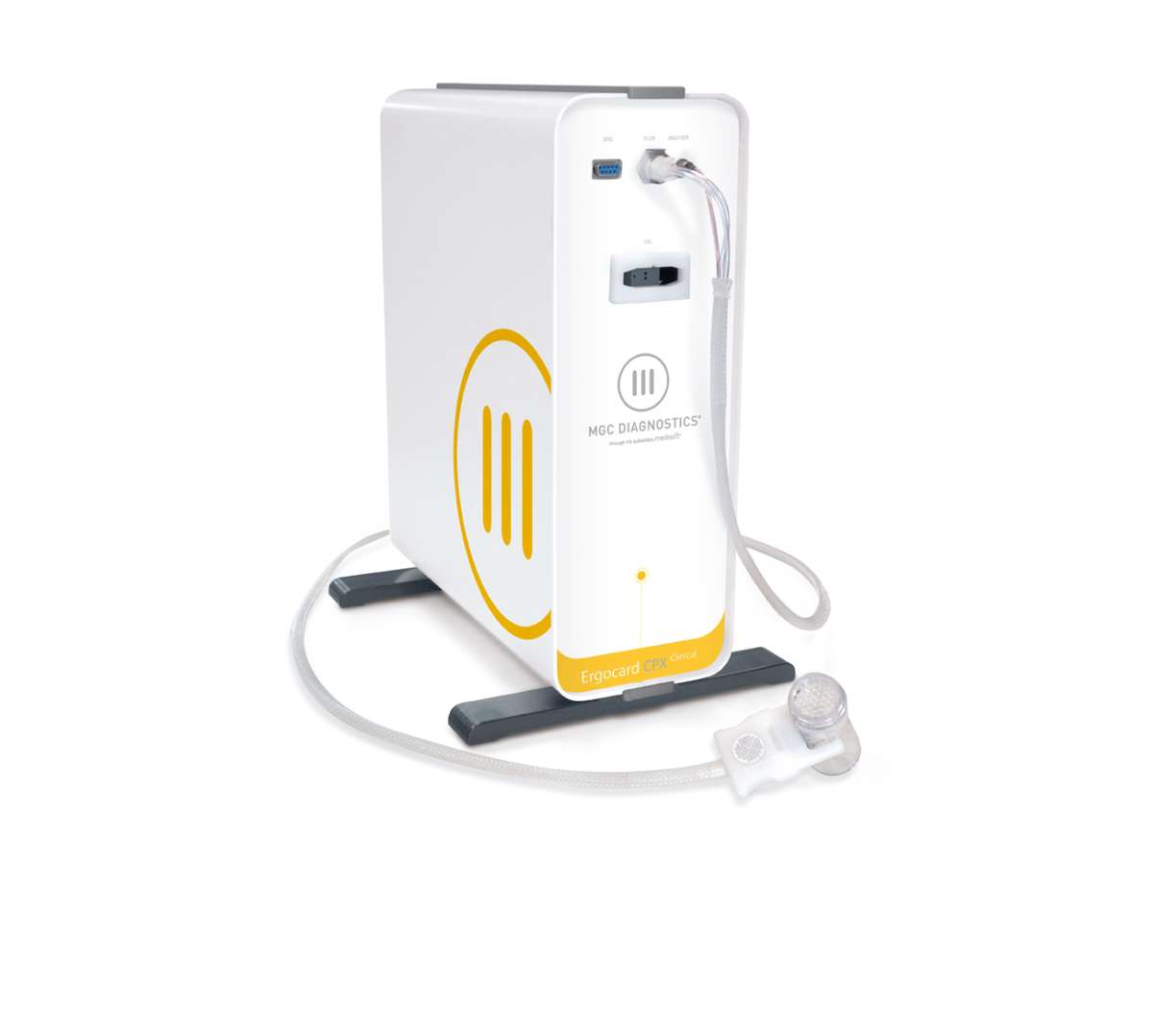

Ergocard CPX exercise testing system

Clinical and Professional models
Two value CPET systems

Contact a Sales Rep
Overview

The Ergocard CPX provides solutions for:

  • Cardiopulmonary exercise testing
  • Pre-operative assessment
  • Rehabilitation  - Post Heart / Lung Surgery
  • Sports Science including Adults to pediatrics

The Ergocard CPX is available in two models: Clinical and Professional.

Ergocard CPX Clinical is an ideal budget system for multiple test centres with networking, pre-operative assessment and clinical work, utilising non-dispersive infrared CO2 and electrochemical O2 sensor with the prevent® flow sensor.

Ergocard CPX Professional adds value to the Research user with the additional of indirect Fick Cardiac Output measurement, The device expands to full CPET/PFT functionality with multiple options (lung diffusion capacity, cardiac output by C2H2 disolution , lung volumes measurement, etc.) using a non-dispersive infrared CO2 and laser spectroscopy O2 sensor.

  • Semi-disposable / reusable  preVent® flow sensor, flow measurement from 0 to 15 l/s.
  • Integrated weather station (temperature, humidity and barometric pressure) for BTPS correction of the volume.
  • Complete basic spirometry measurement, with Forced Vital Capacity, Slow Vital Capacity, Maximum Voluntary Ventilation and Minute Tidal Ventilation including bronchial provocation testing software.
  • Flow limitation during Exercise and Inspiratory Capacity change as a function of FRC change during exercise
  • Integrated NONIN SpO2 pulse oximetry standard for Professional or added option in the Clinical system
  • Also ability to have a direct interface and control with:
    • Cardioline, Mortara, General Electric or Custo-Med ECG
    • Ergometers and treadmills
    • TangoTM automatic blood pressure module with exercise artefact rejection using QRS Synchronisation
    • For simple Heart Rate use of a three electrode chest belt
  • Low cost of operation and low maintenance.
  • Compact system with cart or table-top configurations.
  • Expair software suite with complete operator and patient guide included.


The Ergocard CPX can be combined with the following devices:

  • Micro 5000 spirometer
  • Micro 6000 spirometer
  • BodyBox plethysmograph
  • HypAir pulmonary function testing system
  • SpiroAir volumetric pulmonary function testing system
  • FeNO+
  • Resmon PRO FULL V3 forced oscillation technique
Options

Beside spirometry and exercise testing, several options can be added in the Ergocard CPX Professional to make an exercise testing and a pulmonary function testing in one equipment.

Lung diffusion capacity:

The Ergocard CPX Professional offers 3 choices of lung diffusion capacity measurement (DLCO):

  • Real Time Single breath DLCO with Helium tracer gas, using rapid analyzer.
  • Real Time Single breath DLCO with Methane tracer gas, using rapid analyzer.
  • Intrabreath DLCO with Helium or Methane tracer gas.

For single breath and intrabreath technique, you can choose the method to inhale the mixture:

  • the fastest and most economical: through a demand valve.
  • the most physiological, especially for patient with less cooperation: through an inhalation bag.

Lung volumes measurement:

  • FRC-N2: lung volumes and lung clearance index (LCI) measurement by multibreath Nitrogen washout.
  • N2 slope: measurement of the closing volume by single breath Nitrogen washout. This test is included when you choose FRC-N2 option.

Special Resistance Testing:

  • NEP (negative expiratory pressure): alternative method to detect and quantify expiratory flow limitation, which does not require performance of forced expiratory efforts nor a body plethysmography test.
Configurations

Model Clinical

Test Modes (standard)

  • Spirometry: FVC, SVC, MVV
  • ABG: Arterial Blood Gas Entry
  • VO2: Breath-by-Breath Gas Exchange Exercise Test

Additional Test Mode (optional)

  • SPO2 Oximetry
  • Indirect Calorimetry using a face mask
  • Ventilation Effort Study, Inspiratory Capacity Measurement

Software features (standard)

  • Bronchial Provocation
  • ATS/ERS Criteria Checklist
  • MySQL Database
  • Pediatric Incentives
  • Report Designer
  • Trend Reports
  • User-Defined Predicteds

Additional Software Features (optional)

  • PDF Report Exportation
  • Numerical Data Exportation (XLS, TXT, XML)
  • HL7 Interface Software

Model Professional

Test Modes (standard)

  • Spirometry: FVC, SVC, MVV
  • ABG: Arterial Blood Gas Entry
  • VO2: Breath-by-Breath Gas Exchange Exercise Test
  • SPO2 Oximetry

Additional Test Mode (optional)

  • Hypoxic and Hyperoxic Exercise Testing
  • Indirect Calorimetry using a face mask
  • Ventilation Effort Study, Inspiratory Capacity Measurement
  • FRC-N2 Lung Volumes Measurement by Multibreath Nitrogen Washout
  • N2 Slope: Single Breath Nitrogen Slope
  • DLCO Single Breath: Rapid or Traditional Analyser, Demand Valve or Inhalation Bag, Methane or Helium Tracer Gas
  • Qt-CO2: Cardiac Output by CO2 Rebreathing
  • Qt-C2H2: Cardiac Output by Acetylene Dissolution

Software features (standard)

  • Bronchial Provocation
  • ATS/ERS Criteria Checklist
  • MySQL Database
  • Pediatric Incentives
  • Report Designer
  • Trend Reports
  • User-Defined Predicteds

Additional Software Features (optional)

  • PDF Report Exportation
  • Numerical Data Exportation (XLS, TXT, XML)
  • HL7 Interface Software
Supplies

preVent® Flow Sensor

  • PN: 758100-004 (US), 2496 (Intl)
  • Qty: 24 per box

preVent® Face Mask, Assorted

  • Coupler required for use. Sold separately.
  • PN: 670009-004 (US), 5163 (Intl)
  • Qty: 24 per pack

preVent® Face Mask, X-Small

  • Coupler required for use. Sold separately.
  • PN: 670009-005 (US), 5164 (Intl)
  • Qty: 12 per pack

preVent® Face Mask, Small

  • Coupler required for use. Sold separately.
  • PN: 670009-001 (US), 5165 (Intl)
  • Qty: 12 per pack

preVent® Face Mask, Medium

  • Coupler required for use. Sold separately.
  • PN: 670009-002 (US), 5166 (Intl)
  • Qty: 24 per pack

preVent® Face Mask, Large

  • Coupler required for use. Sold separately.
  • PN: 670009-003 (US), 5167 (Intl)
  • Qty: 12 per pack

Coupler, Face Mask

  • Use with preVent® Face Mask
  • PN: 670010-003 (US), 5168 (Intl)
  • Qty: 4 per pack

Mouthpiece, Adult Medium

  • With saliva trap
  • PN: 758301-001(US), 2493 (Intl)
  • Qty: 50 per pack

Rubber Coupler

  • Use for syringe calibration of preVent flow sensor
  • PN: 536003-001
  • Qty: 1 each

Mouthpiece

  • PVC
  • PN: 2378
  • Qty: 10 per pack

Nose Clip

  • Multicolor
  • PN: 2379
  • Qty: 50 per pack

Nose Clip

  • Blue Silicone
  • PN: 2380
  • Qty: 1 each

Mouthpiece

  • Cardboard
  • 28mm
  • PN: 2347
  • Qty: 250 per box

Permapure Moisture Exchange Line

  • For Ergocard Clinical and Professional
  • 1800mm
  • PN: 2374
  • Qty: 1 each

Nose Clip

  • PVC
  • PN: 2375
  • Qty: 100 per box

Mouthpiece, Adult Small

  • With saliva trap
  • Silicone
  • PN: 2376
  • Qty: 1 each

Mouthpiece, Adult Medium

  • With saliva trap
  • Silicone
  • PN: 2377
  • Qty: 1 each

Filter, MADA

  • Antibacterial
  • Diameter 28mm
  • PN: 2417
  • Qty: 100 or 500 per box

Kit

  • Contains: MADA Filter (diameter 28mm), Mouthpiece and Nose Clip
  • PN: 2418
  • Qty: 80 per box

Face Mask, 7450 model, Large

  • Silicone
  • PN: 2439
  • Qty: 1 each

Face Mask, 7450 model, Medium

  • Silicone
  • PN: 2440
  • Qty: 1 each

Face Mask, 7450 model, Small

  • Silicone
  • PN: 2441
  • Qty: 1 each

Face Mask, 7450 model, X-Small

  • Silicone
  • PN: 2442
  • Qty: 1 each

Face Mask, 7450 model, Pediatric

  • Silicone
  • PN: 2443
  • Qty: 1 each

Headgear, Small

  • For V2 face mask (7450 model)
  • Silicone
  • PN: 2444
  • Qty: 1 each

Headgear, Medium

  • For V2 face mask (7450 model)
  • Silicone
  • PN: 2445
  • Qty: 1 each

Headgear, Large

  • For V2 face mask (7450 model)
  • Silicone
  • PN: 2446
  • Qty: 1 each

Nose Clip

  • Green
  • PN: 2453
  • Qty: 10 per pack

Umbilical

  • For Ergocard CPX
  • PN: 2490
  • Qty: 1 each

Adapter, V2 Mask (7450 model)

  • Silicone
  • PN: 2492
  • Qty: 1 each

Filter, Porex

  • For sample line
  • PN: 2494
  • Qty: 1 each

O-Ring

  • For sample line
  • Silicone
  • PN: 2495
  • Qty: 1 each

Mouthpiece, Adult Large

  • With saliva trap
  • Silicone
  • PN: 2503
  • Qty: 1 each

Mouthpiece, Adult Medium

  • Soft Silicone
  • PN: 2506
  • Qty: 1 each or 10 per pack

Gas, Reference

  • 21% O2, Sold N2
  • Disposable
  • PN: 2548

Gas

  • 16% O2, 4% CO2, sold N2
  • Disposable
  • PN: 2549

Filter Adapter

  • For antibacterial filter diameter 30mm on pneumo diameter 28mm
  • PN: 3497
  • Qty: 1 each

Filter Adapter

  • For antibacterial filter diameter 28/32mm
  • PN: 3498
  • Qty: 1 each

Adapter, Filter, Pediatric

  • For MADA antibacterial filter
  • PN: 3499
  • Qty: 1 each

Tank for Saliva Trap

  • 35° for mouthpiece
  • PN: 3515
  • Qty: 1 each

Tank for Saliva Trap

  • for Ergocard front panel
  • PN: 3624
  • Qty: 1 each

Flow Sensor Adapter

  • For V2 face mask (model 7540)
  • PN: 3631
  • Qty: 1 each

Pneumotachograph Grid, Adult

  • PN: 3737
  • Qty: 1 each

PVC Bag, 7L

  • PN: 3933
  • Qty: 5 per pack

PVC Bag, 9L

  • PN: 3934
  • Qty: 5 per pack

PVC Bag, 40L

  • PN: 3935
  • Qty: 1 or 5 per pack

Permapure Moisture Exchange Line

  • For Ergocard Clinical and Professional
  • 2200mm
  • PN: 4374
  • Qty: 1 each

Tube, Red/Blue

  • For Ergocard Clinical and Professional
  • PN: 4375
  • Qty: 1 each

Analyzer Filter

  • For front face
  • PN: 4397
  • Qty: 5 per pack

Filter, Rear Side

  • PN: 4512
  • Qty: 1 each

Diver Tube, 30cm

  • PN: 4536
  • Qty: 1 each or 5 per pack

Saliva Trap 35°

  • For mouthpiece
  • PN: 4548
  • Qty: 1 each

Calibration Syringe, 3L

  • PN: 4719
  • Qty: 1 each

Pitot Tube, V3

  • PN: 4721
  • Qty: 1 each

Pitot Tube, V2

  • PN: 4722
  • Qty: 1 each

Pitot Tube, Pediatric, V2

  • PN: 4723
  • Qty: 1 each

Electrochemical O2 Cell

  • UFO-130 fast
  • PN: 4753
  • Qty: 1 chacun

Umbilical

  • For CPX and Diffusion
  • PN: 5162
  • Qty: 1 each

Filter, MADA

  • Antibacterial
  • Diameter 34mm
  • PN: 5461
  • Qty: 100 or 500 per box

Nose Clip

  • PN: 6156
  • Qty: 100 per box

An Integrated System

An Integrated System

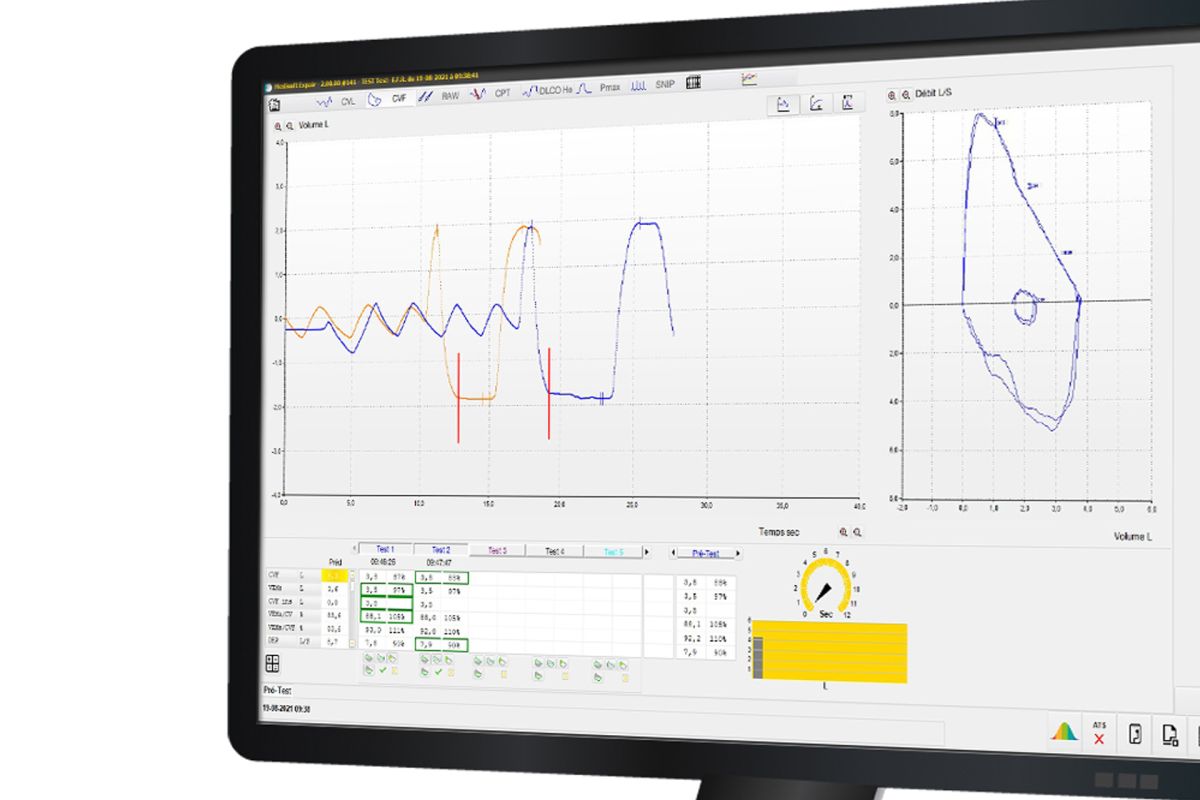

Expair Cardiorespiratory Diagnostic Software
  • Intuitive and user-friendly interface
  • Choice of languages and units of measurement
  • Full calculation function, display of calculation points with manual correction capability
  • Quality control automated software, diagnostic functions and full program control
  • Predicted value editor, new interpretation algorithm based on LLN, ULN, Z-score and percentile.
  • Trend tabular data reporting of any parameter
  • Results export capabilities (PDF, TXT, XML) for research or integration to Hospital Information System
  • Report designer, comments and offline input
HL7 Interface Software

Our HL7 interface software allows any number of networked systems to exchange data with the electronic medical records (EMR) system.

  • Electronic medical record interface using latest HL7 standards with either unidirectional or bidirectional capability

Flexible access allows physicians to view and interpret patient results from any location on the facility’s network.

preVent® Flow Sensor for Simplicity and Accuracy

Our proprietary preVent® flow sensor saves time between patients and provides maximum infection control compared to other pneumotach devices.

  • Eliminates warm-up or flow recalibration between patients.
  • Simple snap in setup contains no moving parts or electronics for maximum infection control.
  • Options to use with a filter (for PFT), sterilize, or discard, making it extremely versatile and cost effective.
  • Meets ATS/ERS standards and specifications.



See All Supplies
